Copper vs Aluminium Conductor The Real Cost Comparison for MV Projects



Copper and aluminium conductors both appear in medium voltage cable programmes, and both can meet the same electrical duty when the design is done properly. The conductor material sets the resistivity, and resistivity sets how much metal a design needs: aluminium has roughly 1.6 times the resistivity of copper, so an aluminium conductor needs about 1.6 times the cross section to reach the same resistance. That single relationship drives the diameter, the mass, the cost structure and the jointing requirements of the whole cable.

The real cost difference is therefore not the price per tonne. It is the difference between conductor metal cost, complete cable cost and installed route cost, combined with losses, accessories and the reliability of every connection. This guide compares the two conductor materials across electrical, thermal, mechanical and commercial factors, with a method for comparing quotations on a like-for-like basis.

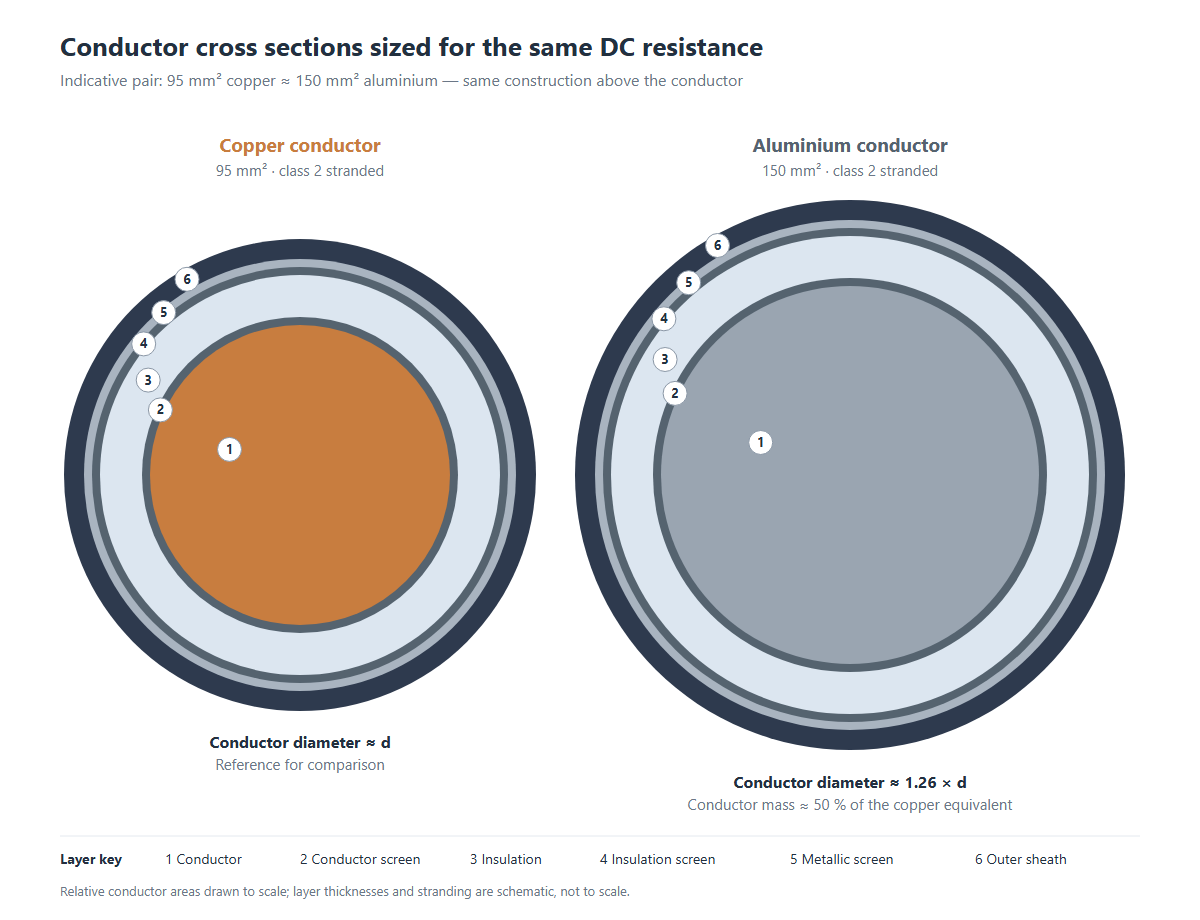

Figure 1. Indicative cross sections of the same MV construction with equal-resistance conductors. Relative conductor areas are drawn to scale; layer thicknesses are schematic.

What actually changes when the material changes

For conductor-grade materials at 20 °C, commonly published resistivity values are approximately 0.0172 Ω·mm²/m for annealed copper and 0.0283 Ω·mm²/m for aluminium. The ratio, about 1.64, is the number that shapes everything else.

Match the DC resistance and three things follow. The aluminium conductor area must be about 1.6 times the copper area. Its diameter grows by the square root of that ratio, roughly 1.25 to 1.3 times depending on stranding and compaction. Its mass, however, falls to about half of the copper equivalent, because aluminium weighs only about 30 % as much as copper per unit volume.

None of this says anything about quality. Both materials are well understood, both are covered by long-standing conductor standards, and both are used at every voltage level. What the material changes is the geometry of the design and the discipline required at its connections.

Two second-order effects deserve a sentence each, so that they are neither ignored nor overstated. At power frequency, skin and proximity effects raise the AC resistance above the DC value; the correction differs between the two materials and between diameters, but for typical MV conductor sizes it is modest, and the ampacity calculation should simply use calculated AC resistance for the actual conductor rather than a rule of thumb. Resistance also rises with temperature, and the temperature coefficients of copper and aluminium are similar; what matters in practice is that both ampacity and fault calculations use the temperatures the applicable standard prescribes, not ambient assumptions carried over from another project.

Copper vs aluminium conductor at a glance

Compare designs built to the same voltage class, insulation system and installation conditions. A 95 mm² copper cable and a 95 mm² aluminium cable differ in much more than their conductors.

Comparison

Copper conductor

Aluminium conductor

Resistivity at 20 °C

Reference material

≈ 1.6 × copper

Area for equal resistance

Reference size

≈ 1.6 × copper area

Diameter for equal resistance

Reference size

≈ 1.25–1.3 × copper

Conductor mass for equal resistance

Reference

≈ 50 % of copper

Ampacity, same physical size

Higher

Lower, ≈ 20 %

Short-circuit area for equal duty

Reference

≈ 1.5 × copper area

Termination requirements

Standard practice

Aluminium-specific connectors and preparation

Handling

Heavier drums

Lighter drums, longer lengths possible

Sizing aluminium to match copper

An aluminium design is credible when it is sized for the duty, not swapped size-for-size. Three checks matter, and they point to the same area ratio.

Resistance and ampacity. Published maximum DC resistance values for class 2 stranded conductors show the pattern clearly: a 95 mm² copper conductor and a 150 mm² aluminium conductor sit within about 7 % of each other, as do 120 mm² copper and 185 mm² aluminium, 150 mm² copper and 240 mm² aluminium, and 185 mm² copper and 300 mm² aluminium. With matched resistance, ampacity under the same installation conditions is comparable, because conductor loss dominates the thermal balance. Verify the actual values against the applicable conductor standard and the manufacturer's declared data for the specific cable.

Ampacity should then be verified for the actual route, not lifted from a catalogue line. A steady-state rating calculation for the real burial depth, soil thermal resistivity, formation and bonding arrangement, applied identically to both conductor options, is the only basis on which "comparable ampacity" is a defensible statement. A rating copied from two different catalogue tables — possibly calculated under different assumptions — has settled nothing.

Short-circuit duty. For an initial adiabatic check, S ≥ I√t / k, where I is the fault current, t the clearing time, S the conductor area and k a coefficient covering material and permitted initial and final temperatures. Commonly published values for XLPE insulation (90 °C initial, 250 °C final) are about 143 A√s/mm² for copper and 94 A√s/mm² for aluminium. The ratio, 1.52, again demands a larger aluminium area for the same duty.

Illustrative calculation. If a conductor must carry 20,000 A for 0.5 s: copper requires 20,000 × √0.5 / 143 ≈ 99 mm², so a 120 mm² conductor clears the check. Aluminium requires 20,000 × √0.5 / 94 ≈ 150 mm², so 185 mm² clears it. The chosen k values are assumptions for this example, not universal constants; the applicable standard and the complete fault path, including joints, still need verification. As with screen sizing, doubling the assigned current doubles the required area, and doubling the clearing time multiplies it by √2.

Voltage drop. Voltage drop follows resistance. Sized for equal resistance, an aluminium feeder drops about the same voltage as its copper equivalent over the same route. Sized one-for-one at the same cross section, it drops roughly 60 % more and carries less current. The mistake to avoid is comparing catalogues by conductor size instead of by resistance.

Where the cost difference actually comes from

The material argument for aluminium starts at the metal. With conductor mass at about half of the copper equivalent, and with copper typically trading at three to four times the aluminium price per tonne, the conductor metal in an equal-resistance aluminium design costs roughly 12–15 % of its copper counterpart. Metal prices move constantly, so this arithmetic should be redone with current prices for every serious comparison.

Figure 2. The cost advantage narrows from conductor metal to complete cable to installed route. Illustrative proportions, not a price model.

The advantage then shrinks at each level above the metal. A complete cable is not a conductor: insulation, semiconductive screens, metallic screen, armour and sheath are all still purchased, and the larger aluminium conductor increases the circumference of every layer around it. Cable-level savings are real but smaller than metal-level savings.

At the installed route the comparison is again different. Aluminium cables are lighter, which can allow longer drum lengths, fewer joints, easier handling and lower support loads. But the larger diameter needs bigger glands, more duct occupancy and more bending space, and jointing aluminium properly takes disciplined workmanship. The installed cost gap between the two materials is usually the smallest of the three levels, and it can move either way depending on the project.

Compare cost per ampere-kilometre delivered, never cost per tonne of metal. A quotation comparison that starts from the metal price has not started from the project.

Losses and lifecycle cost

A persistent claim holds that aluminium cables waste more energy. The claim is wrong for correctly sized designs and right for lazily sized ones, and the distinction is worth making precisely.

Conductor loss is I²R. If the aluminium conductor is sized for equal resistance, its losses are equal — that is what equal resistance means. If it keeps the same cross section as the copper design, its resistance is about 1.6 times higher, its ampacity about 20 % lower, and its losses under the same load correspondingly higher. The material does not determine the losses; the sizing does.

Over a feeder's life, monetised losses can exceed the cable purchase price. A lifecycle comparison should therefore state the load profile, energy price, load factor and evaluation period, then compare total cost of ownership: purchase price plus cost of losses plus maintenance and outage consequences. A slightly higher purchase price that reduces losses over twenty years can be the cheaper decision, in either material. Lifecycle conclusions drawn from the metal label alone are marketing, not engineering.

Terminations and joints: the reliability decision

If one topic decides whether an aluminium conductor performs, it is the connection. Aluminium is not difficult; it is unforgiving of improvised work.

Three behaviours drive the requirements. Fresh aluminium surfaces oxidise within minutes, and the oxide is electrically resistive, so contact surfaces must be prepared and immediately protected. In the presence of moisture, aluminium and copper form a galvanic couple in which the aluminium corrodes, so direct mixed-metal joints need a factory-made transition rather than a workshop improvisation. And aluminium creeps under sustained mechanical pressure, so bolted connections relax over thermal cycles unless the hardware compensates.

Figure 3. The interface between conductor and terminal decides long-term reliability. Conceptual arrangement; connector selection, preparation and torque must follow the accessory manufacturer.

The qualified answer is well established. Use connectors and compression tools that are specified and tested for aluminium conductors, including bimetallic aluminium-to-copper lugs where the landing point is copper. Prepare the surface, apply the specified jointing compound, and tighten to the specified torque with the specified hardware, adding a spring element or a re-torque interval where the manufacturer requires one. None of this is exotic; all of it is routinely skipped.

A copper cable terminated carelessly is also a poor cable. The difference is that aluminium's failure mechanisms are less familiar to crews trained on copper, so the specification should name the connector type, the compound, the torque and the inspection interval. A connection the accessory manufacturer stands behind is available for both materials; the buyer's job is to require it.

Certification, testing and documentation

Both conductor materials are covered by the same system of cable standards, type tests and routine tests, and the certificate requirements do not change with the metal. What does change is what the buyer should ask to see.

For the conductor itself, request the declared maximum DC resistance at 20 °C for the actual class and material, and confirm it against the applicable conductor standard. For the complete cable, the type test report proves that a design passed a defined test sequence; it does not, by itself, certify every drum delivered. Routine conductor resistance measurement on each production length is the check that ties delivered drums back to the approved design, and it is equally relevant to copper and aluminium.

Documentation should also record the jointing system: connector types, dies, compounds and torque values approved for the conductor material. When these are on file at ordering stage, site crews cannot improvise at commissioning stage. A quotation that arrives without this data is incomplete, in either metal.

Mechanical behaviour and installation

Weight is aluminium's genuine physical advantage. Lighter drums mean easier transport and handling, longer delivered lengths, fewer joints on long routes and lower loads on trays, racks and structures. On cable-heavy projects this shows up in logistics as well as in labour.

Diameter is the counterweight. The larger aluminium conductor increases the overall cable diameter, which increases the minimum bending radius, consumes duct and trough space, requires larger glands and sealing arrangements, and can reduce the delivered length a drum can hold. Route planning should compare the actual drum dimensions and outer diameters, not the conductor sizes.

Pulling practice deserves respect in both materials. Aluminium has lower tensile strength than copper, so the permissible pulling tension on the conductor is generally lower for the same cross section; obtain the limit from the manufacturer, use a pulling eye or approved grip, and respect sidewall pressure and minimum installation temperature limits. A fixed installation cable of either material is not automatically suitable for repeated movement.

Where each conductor makes sense

A copper conductor is a practical candidate where space, compactness or a high fault duty per cross section dominate: dense substations, small enclosures, upgrade routes with fixed duct sizes, and installations where the existing accessory and connector system is copper-based and the interface risk must be minimised.

An aluminium conductor is a practical candidate for long feeders and utility-scale distribution where material cost is a major share of the project and the route can accommodate the larger diameter — provided the jointing system is engineered, specified and supervised. Renewable generation collector circuits and long urban feeders are typical applications where the mass advantage also simplifies logistics.

Neither material is automatically the better choice. The selection rule is the project duty: current, fault level, clearing time, route length, installation conditions, accessory availability and total cost of ownership — evaluated as a complete cable system.

How to compare two conductor quotations

The following inputs make copper and aluminium quotations comparable and expose hidden differences.

  1. Confirm rated voltage, insulation system and the applicable cable standard for both offers.
  2. Obtain nominal cross section, maximum DC resistance at 20 °C and the declared ampacity for the actual installation conditions.
  3. State the assigned fault current and clearing time, and check the conductor and joint short-circuit ratings against them.
  4. Request the complete accessory schedule: connector types approved for the conductor material, compound, torque values and any spring elements.
  5. Compare drum lengths, outer diameters, drum masses and bending radii against the actual route and logistics plan.
  6. Monetise losses with a stated load profile, energy price and evaluation period, and add them to the purchase price.
  7. Compare total installed cost per route, then decide — and record which assumptions the decision rests on.

Quotations that cannot answer these questions are not comparable, whatever the metal.

Frequently asked questions

Is aluminium cable always cheaper than copper?

The conductor metal is cheaper at typical price ratios, and the complete cable is usually cheaper. The installed route may not be, because the larger diameter affects glands, duct occupancy and bending space, and because disciplined jointing costs labour. Compare installed cost per route for the actual project.

Does aluminium cable waste more energy?

Only when it keeps the copper design's cross section. Sized for equal resistance, aluminium losses are equal by definition. Losses follow resistance, not the metal's name.

Can I replace a copper cable with an aluminium one of the same size?

No. The same cross section in aluminium has about 1.6 times the resistance, roughly 20 % less ampacity and a lower short-circuit rating. Treat the substitution as a system redesign covering sizing, accessories, glands and route space, and recheck every rating.

Are aluminium connections less reliable than copper ones?

Not when they are engineered properly. The failure modes — oxide, galvanic corrosion, creep — are managed with connectors tested for aluminium, correct surface preparation, compound, controlled torque and inspection. Poor workmanship fails in both materials; aluminium has less tolerance for it.

Do aluminium conductors need larger accessories and glands?

Yes, and this belongs in the comparison from the start. The larger conductor increases the overall cable diameter, so glands, sealing arrangements, cleats and duct provision must match the aluminium design's actual dimensions. Accessory kits ordered for a copper cable's dimensions will not fit, and retrofitting them mid-project costs more than specifying correctly at the beginning.

How large is the real saving on a typical MV project?

It depends on the share of conductor metal in the total cost and on current metal prices, which is precisely why no honest article can quote one number. What can be stated is the method: compare equal-resistance designs, price the complete cables, price the accessories and labour, monetise the losses, and compare the totals. Projects dominated by long routes and high loads tend to see the largest aluminium benefit; compact installations with fixed duct sizes tend to see the least.

Which conductor should I specify?

Specify the duty first: current, fault level and clearing time, route length, installation conditions and cost basis. Then let the complete cable system — conductor, insulation, screens, accessories and jointing — meet that duty with verified data and a defensible installed cost. A clear specification lets the supplier propose either material honestly.
